Complete OBDX Pro System
Complete OBDX Pro System
Complete OBDX Pro System - 2
Complete OBDX Pro System - 3

Complete OBDX Pro System

2,295 SEK
OBDX Pro ECU version 1.1 including wiring harness, sensors and wireless interface
Read more...

In stock: 3

  • Secure payment by card
  • E-mail us, we reply swiftly!
  • These rows can be edited \*

\* Edit these rows under Content > Article page

Description

Article no.: OBDX Pro kit

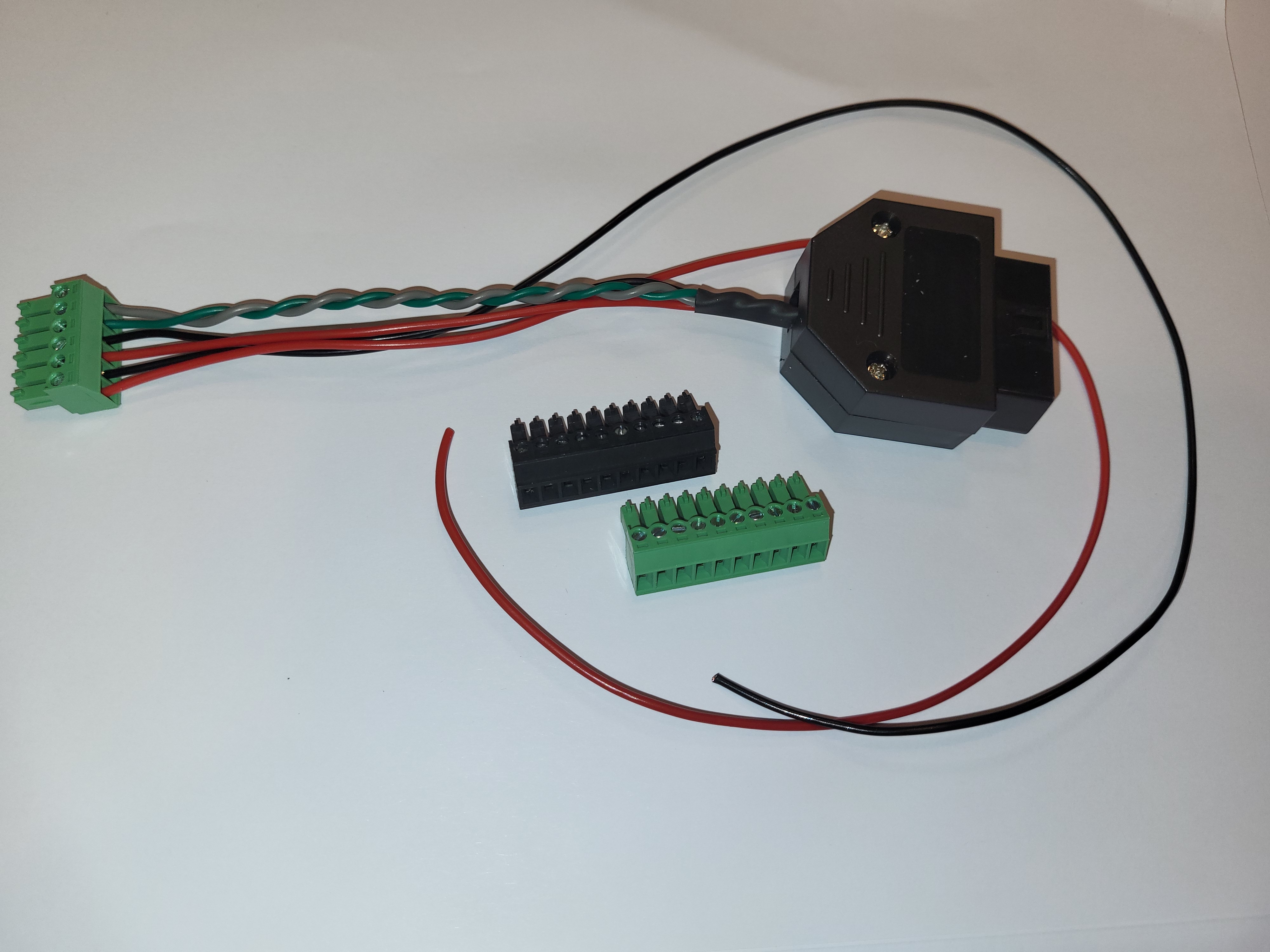

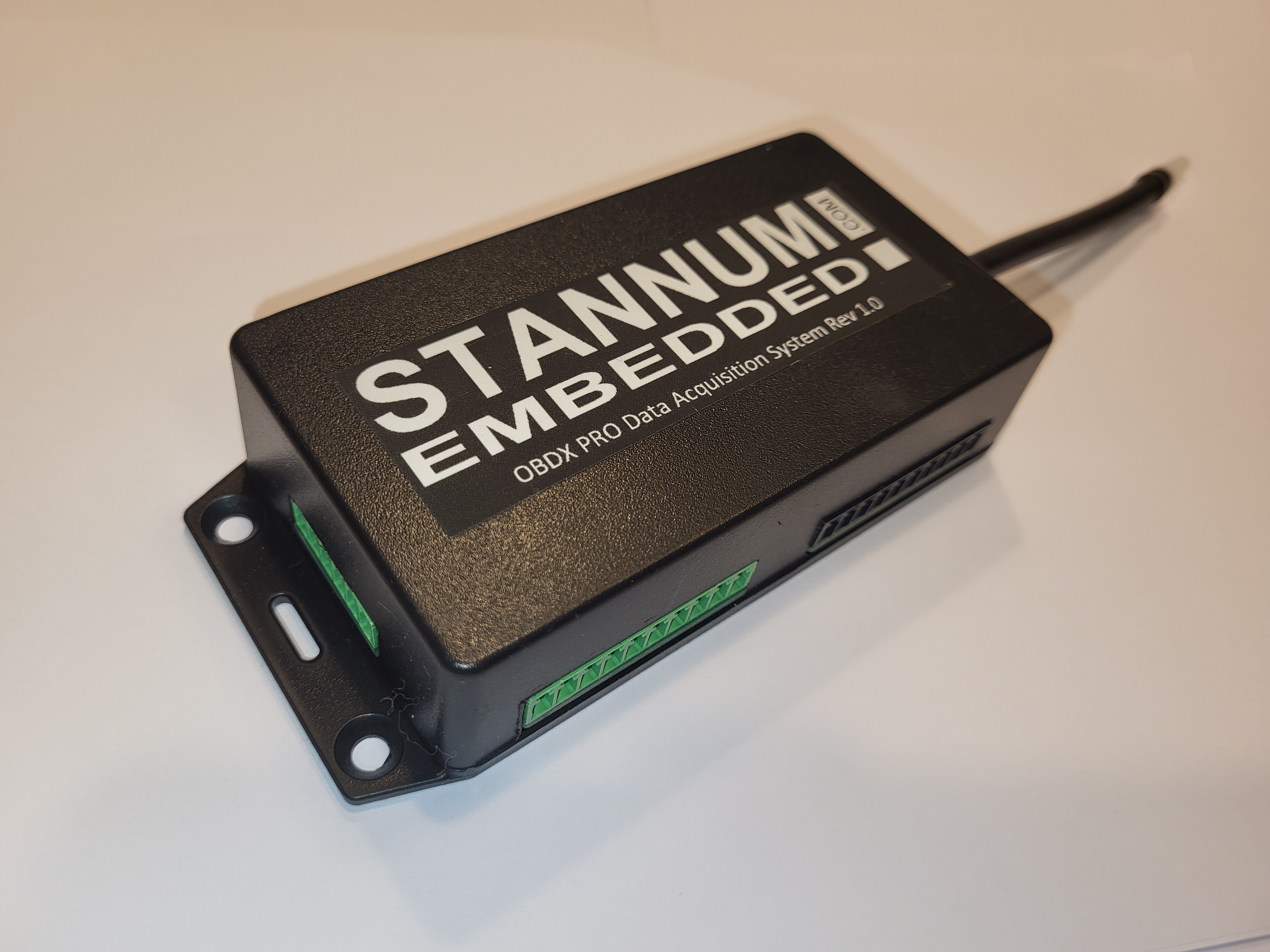

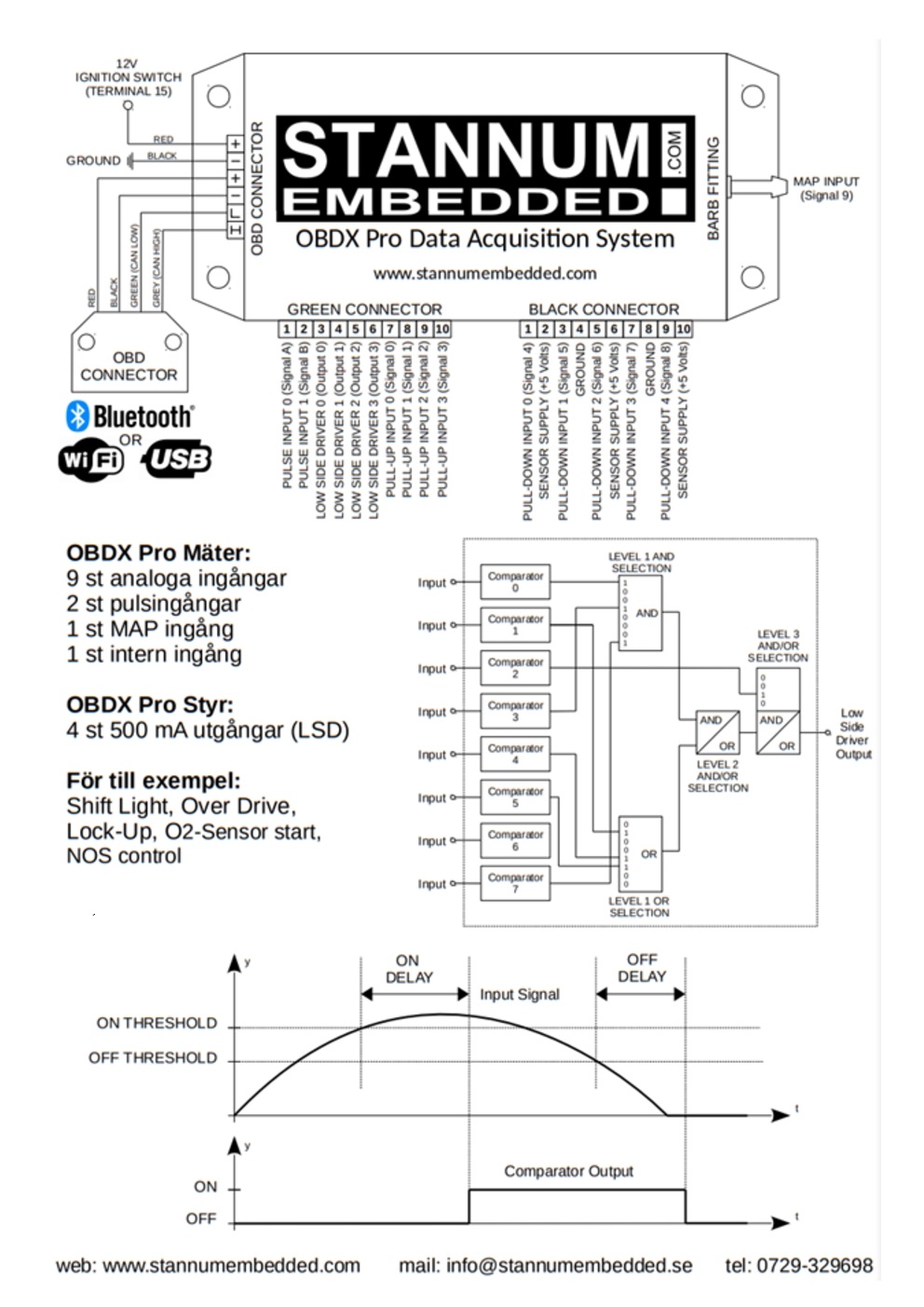

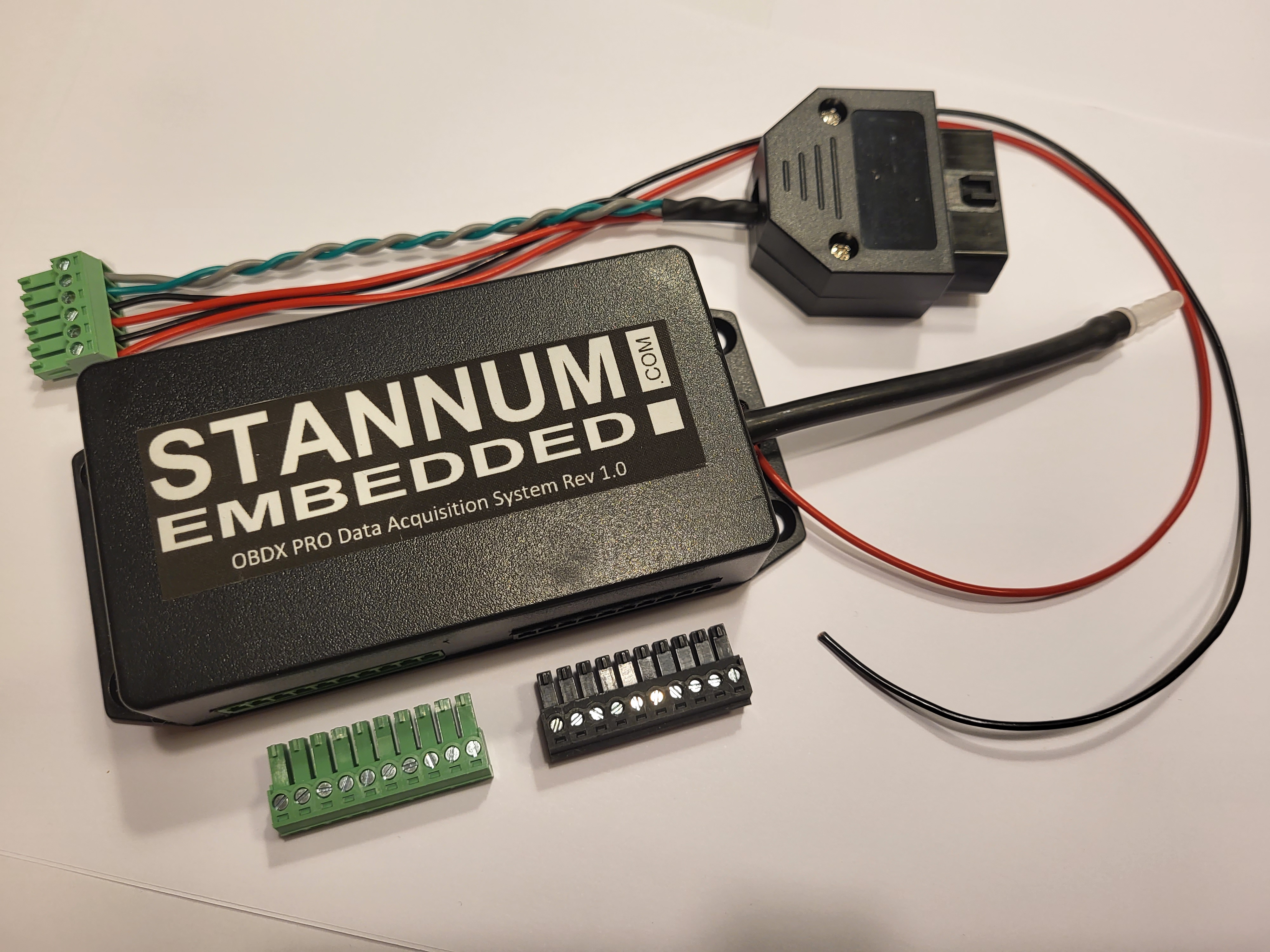

The OBDX Pro ECU reads sensors, calculates the engineering units and sends the data to the OBD connector when the data is requested. The OBDX Pro ECU also drives 4 ground outputs suitable for connecting to relays or indicator lights. The outputs are activated based on the value of one or more inputs. Included in this article is: OBDX Pro ECU Wiring harness with 315 mA fuse to power supply and gound Pre-wired and installed OBD connector Your selection of sensors and wire harness Your selection of wireless interface

Files and media

OBDX Pro manual
